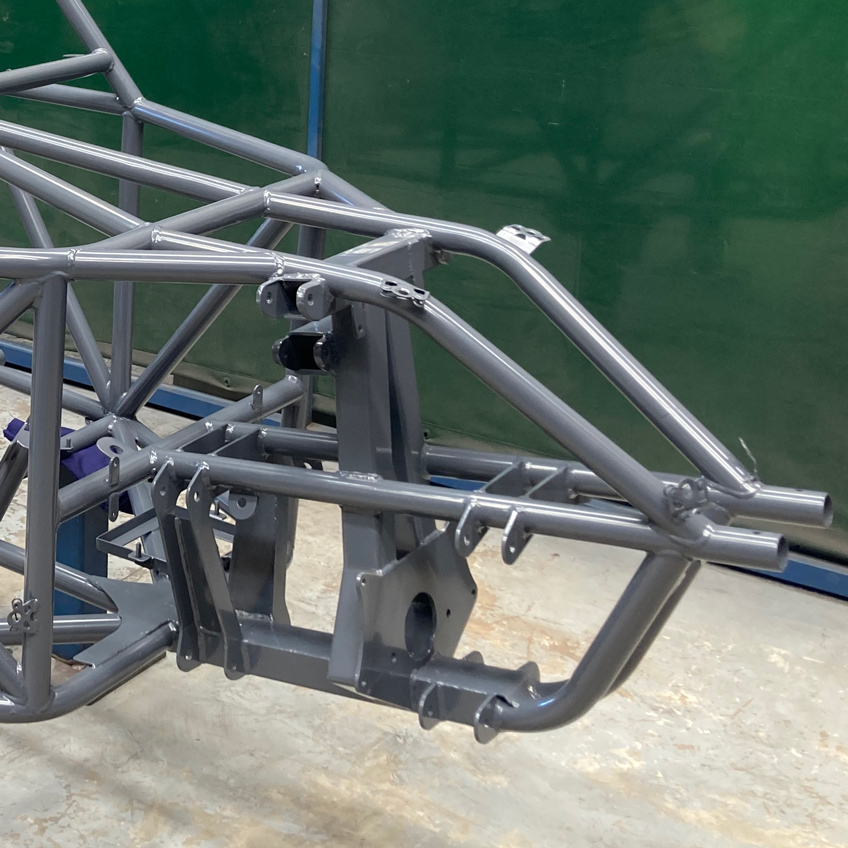

The New RCR Mk1 chassis was designed from the ground up in Solidworks with a focus on innovation and simplification, it is designed as a self build off road racing chassis.

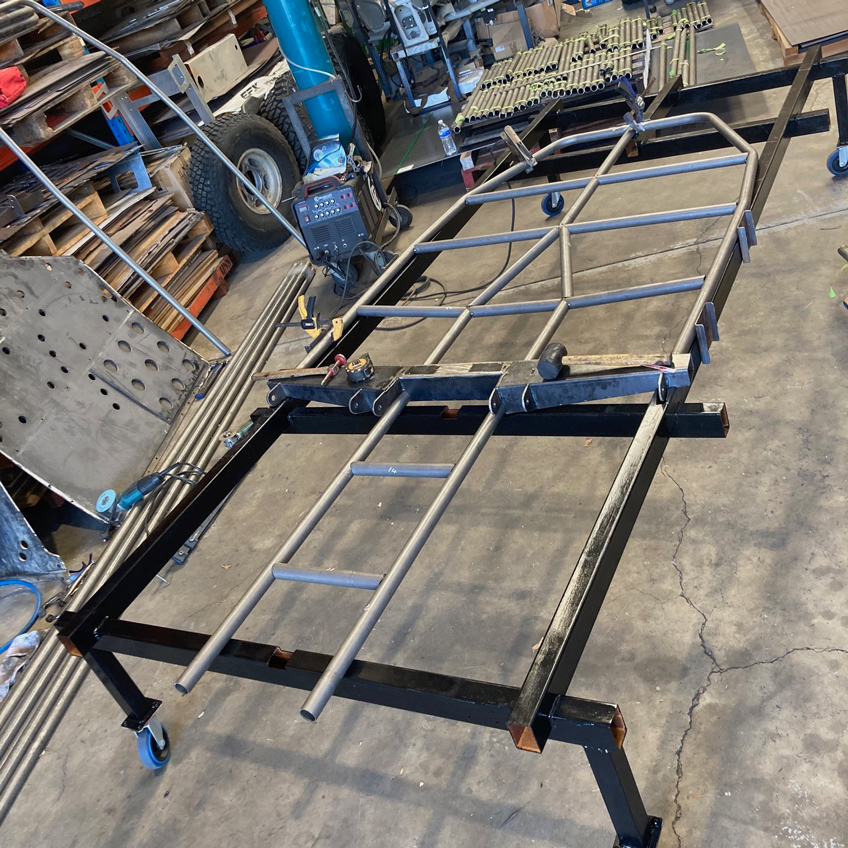

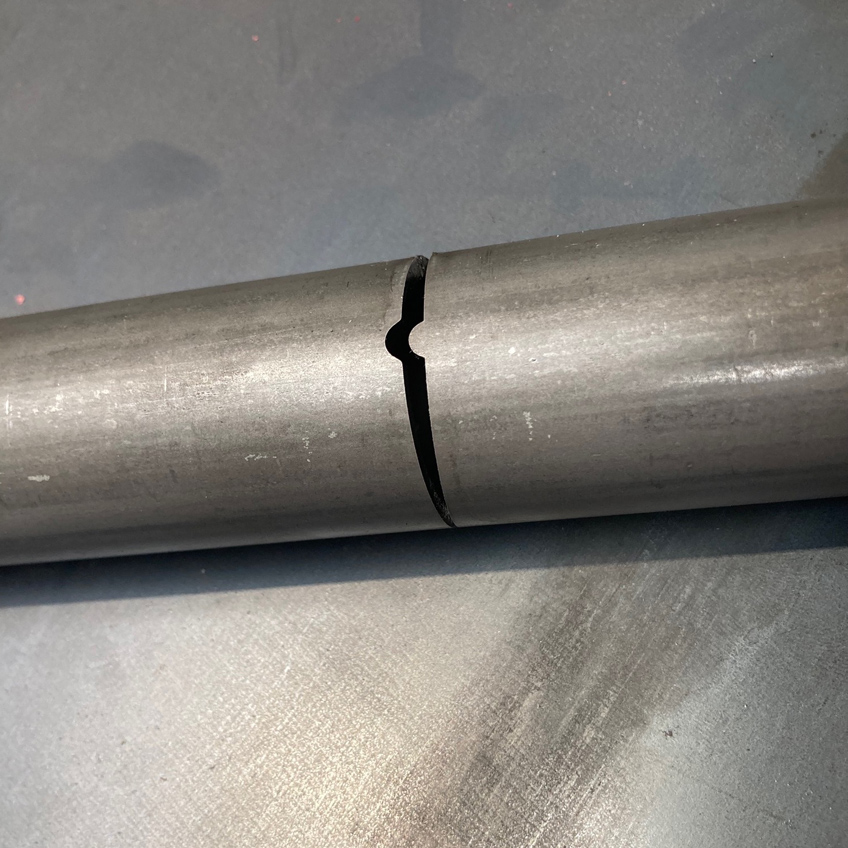

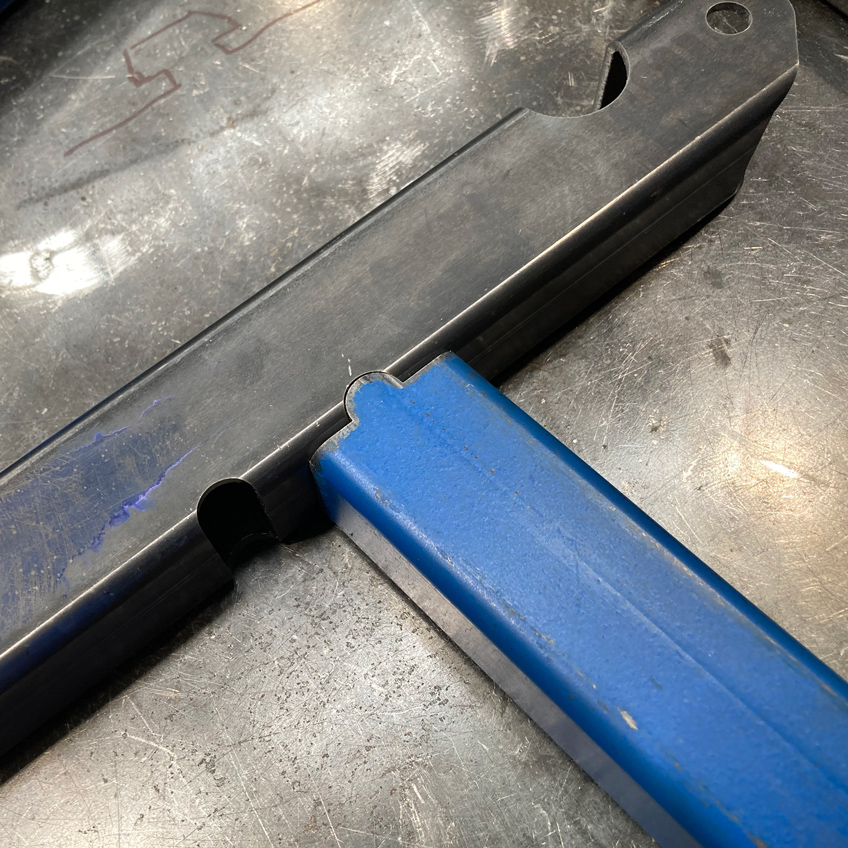

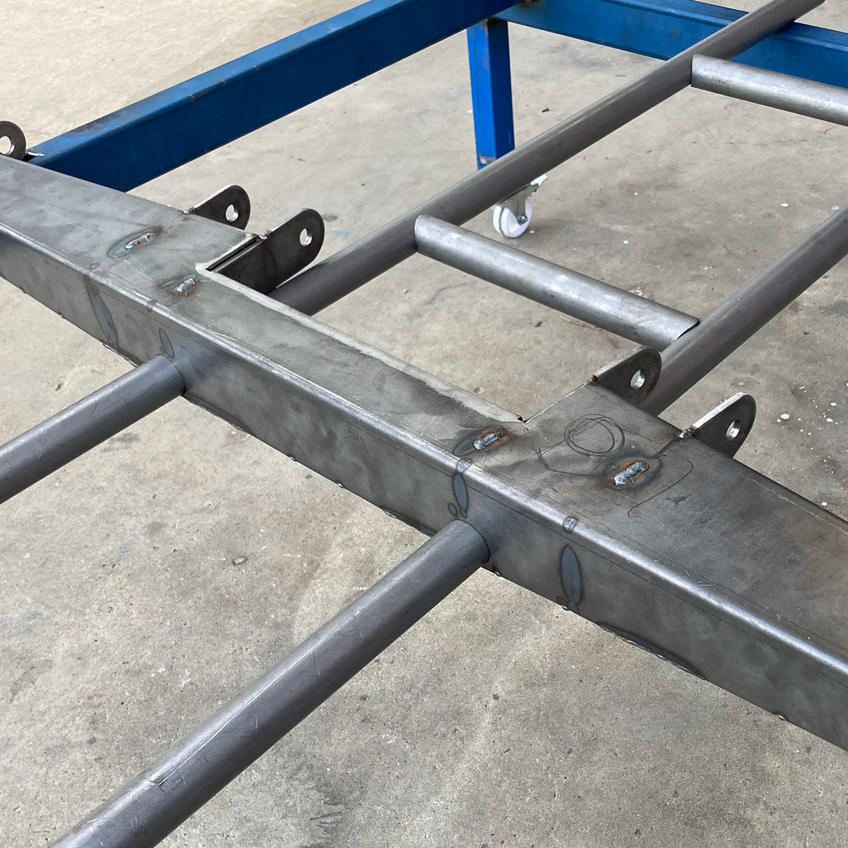

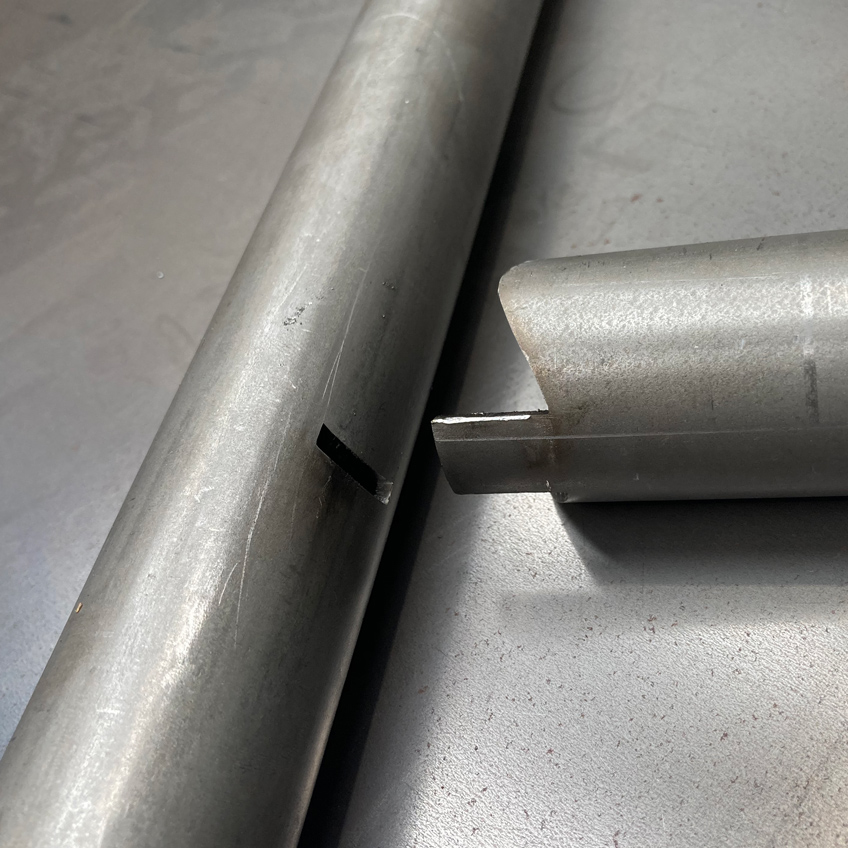

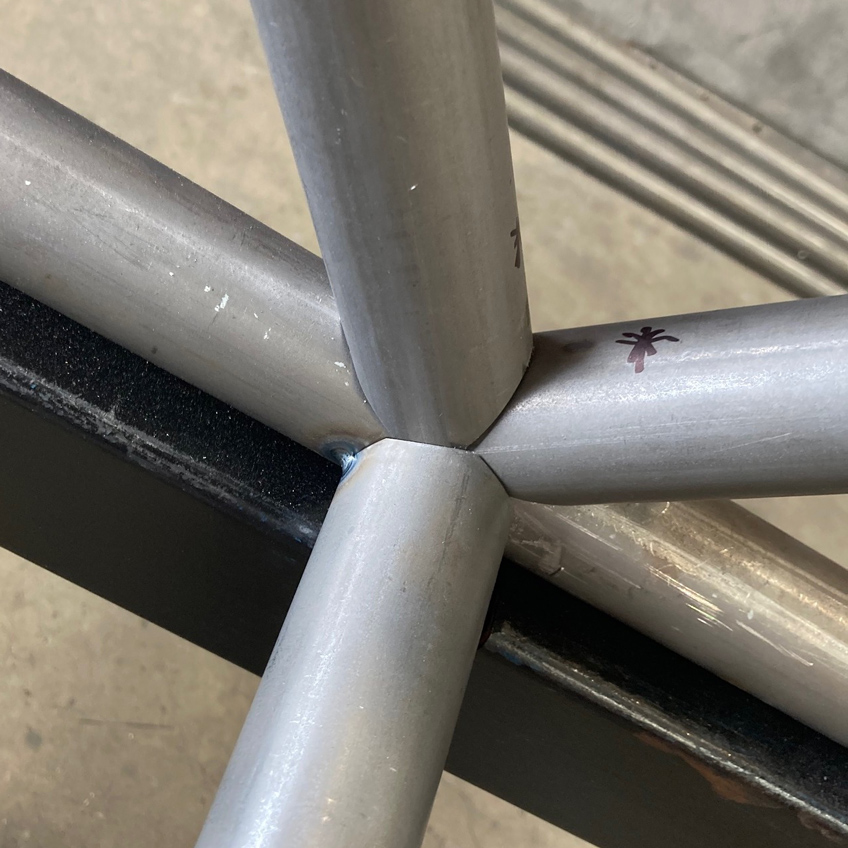

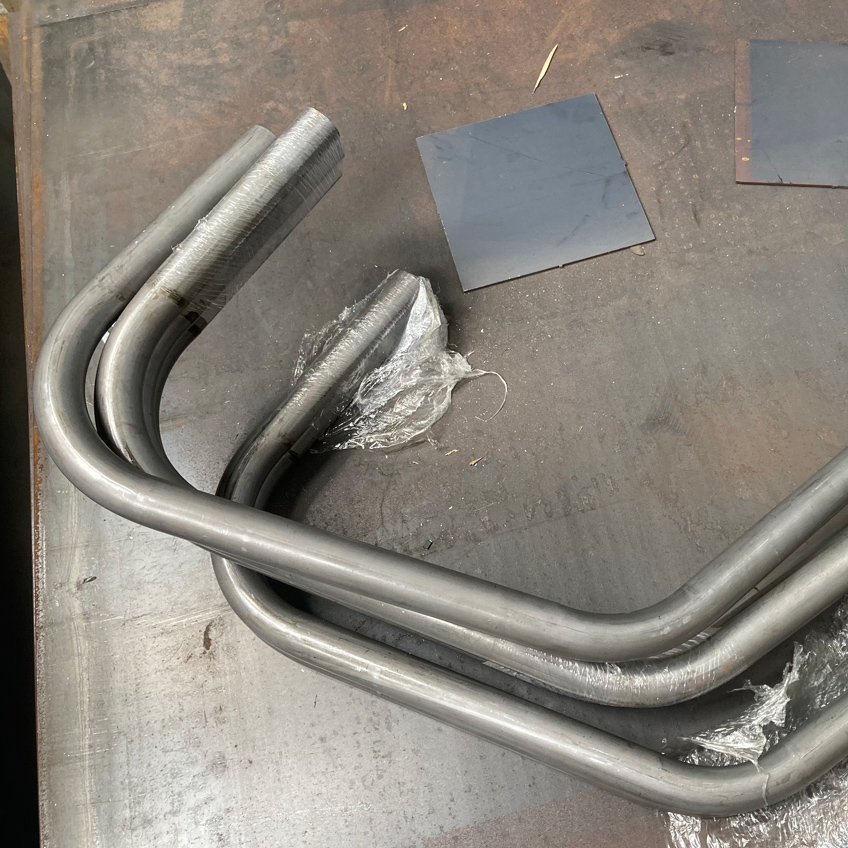

The kit consists of a 4th axis laser notched, CNC mandrel bent tube chassis. Utilizing our innovative tab and slot design for easy positioning of tubes, individually number components and a full size chassis jig, it’s ready to be welded together by following the detailed animated instructions.
The roll cage is manufactured from 1.5” x 0.102” (38.1mm x 2.6mm) 350G CDW Tube which is subjected to the Drawn Over Mandrel (DOM) process after manufacturing, this strengthens it through cold working. The end result is a strong and lightweight motorsport approved tube.
Revrange MK1 Chassis
Four options for purchase

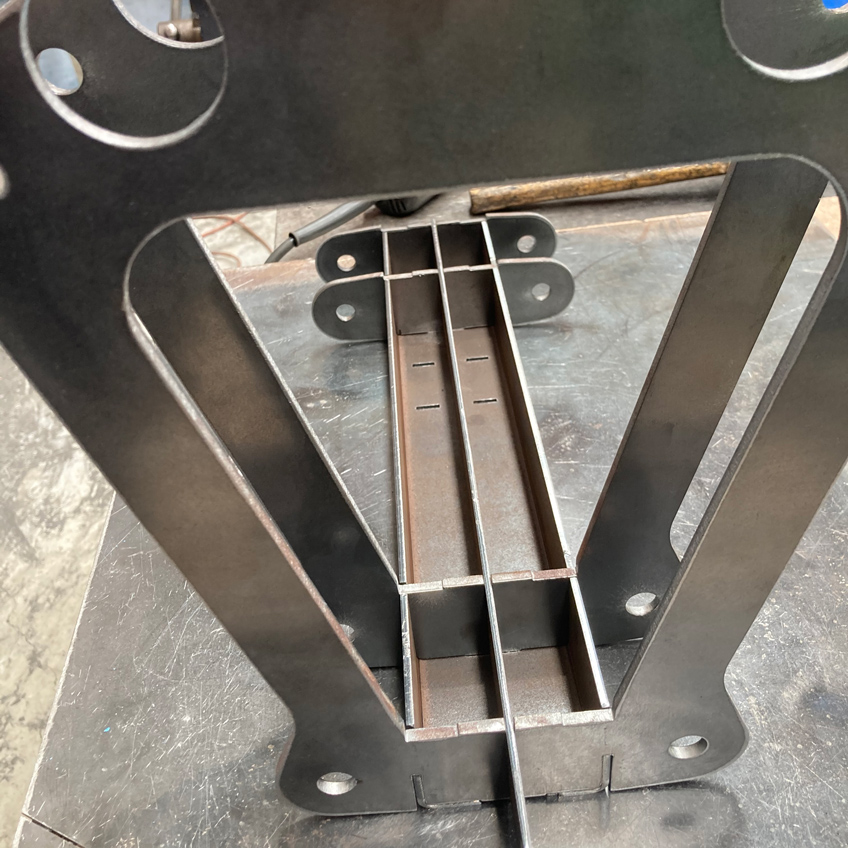

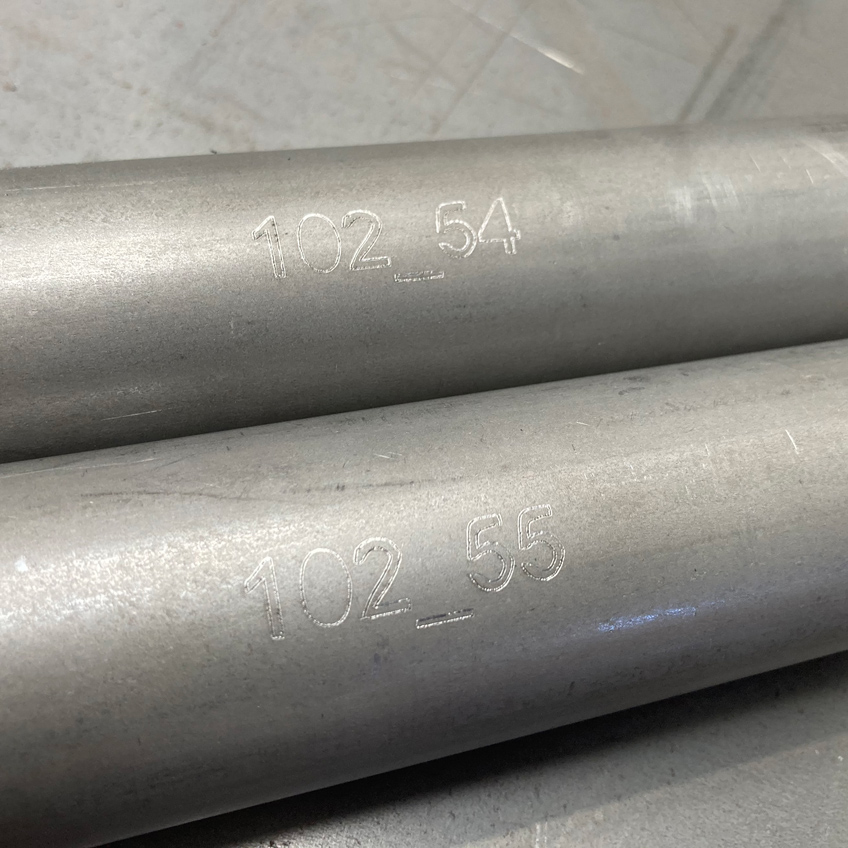

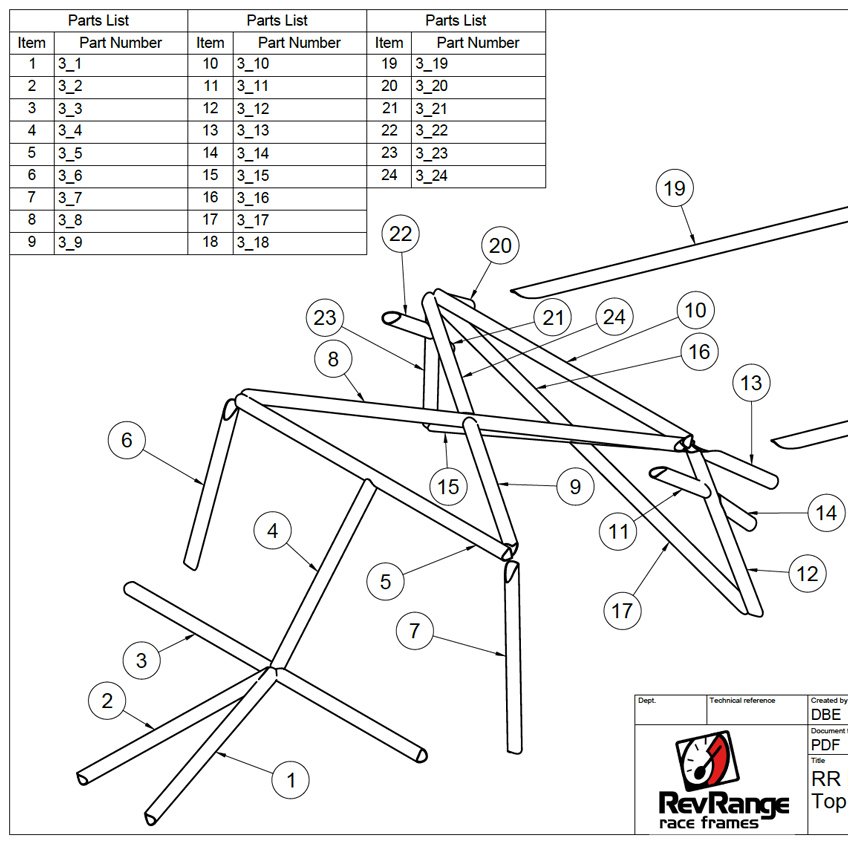

The flat pack chassis kit comes with all the laser cut tubes to make the MK1 chassis. The chassis will need to be assembled and welded by an appropriately qualified person. The tubes are cut to length/mitred, cnc bent, etc. All tubes are numbered to correspond with the (included) chassis assembly drawings. The chassis kit also includes the front and rear bulkhead assemblies which have front and rear shock mounts and the steering rack mount.
Note: This is for the chassis only and does not include the actual suspension components i.e front upper arms, front lower arms, front left and right upright assemblies, and rear arms - these suspension components are available for separate purchase. This kit also needs the (optional) full-size jig for assembly.
The flat pack chassis kit comes with all the laser cut tubes to make the MK1 chassis. This kit also needs the full-size jig for assembly.The chassis will need to be assembled and welded by an appropriately qualified person. The tubes are cut to length/mitred, cnc bent, etc. All tubes are numbered to correspond with the (included) chassis assembly drawings. The chassis kit also includes the front and rear bulkhead assemblies which have front and rear shock mounts and the steering rack mount.
Note: This is for the chassis only and does not include the actual suspension components i.e front upper arms, front lower arms, front left and right upright assemblies, and rear arms - these suspension components are available for separate purchase.
The tacked flat pack chassis kit is supplied with the chassis fully assembled and tacked together ready to be welded out by an appropriately competent person. The chassis kit also includes the front and rear bulkhead assemblies which have front and rear shock mounts and the steering rack mount.
Note: This is for the chassis only and does not include the actual suspension components i.e front upper arms, front lower arms, front left and right upright assemblies, and rear arms - these suspension components are available for separate purchase.
