Can-am X3

Front A-Arms

All pricing shown is in USD

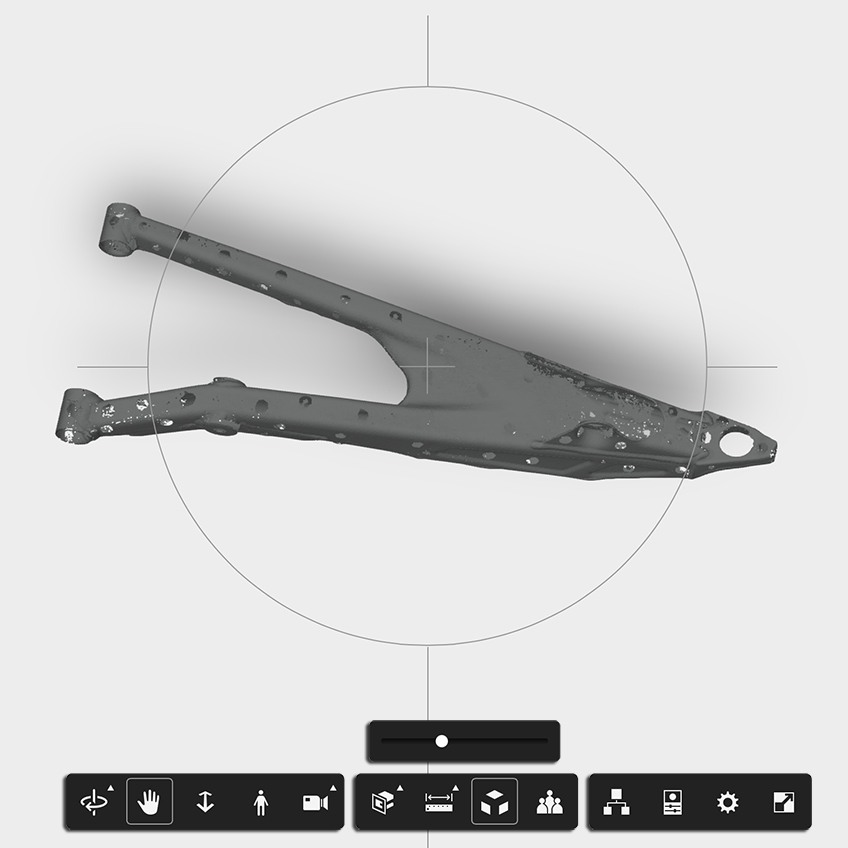

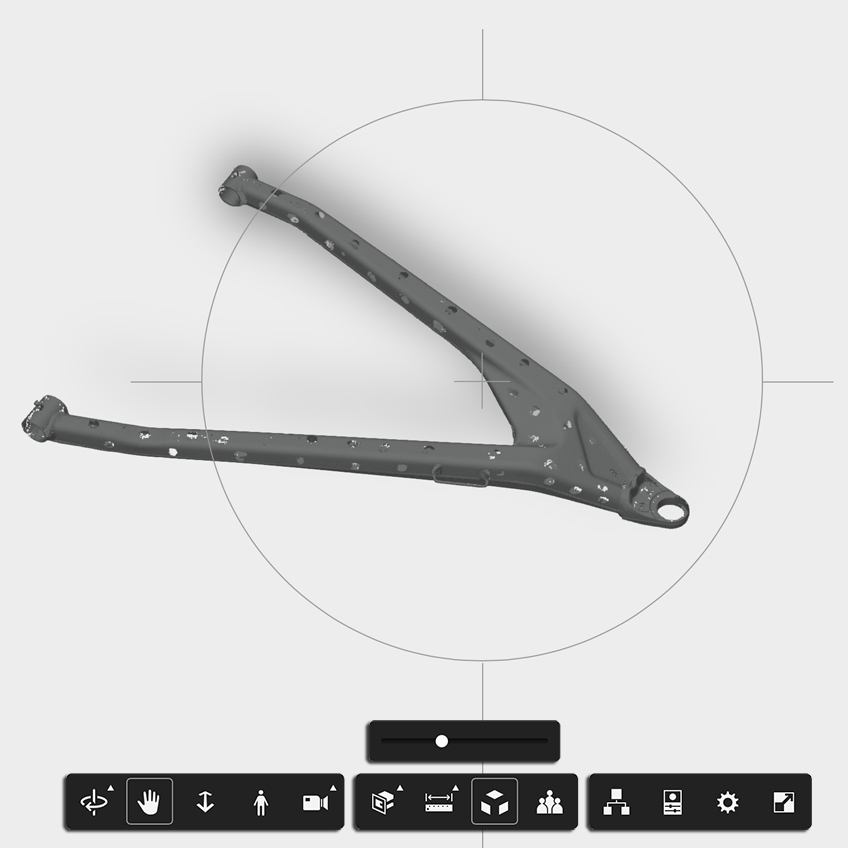

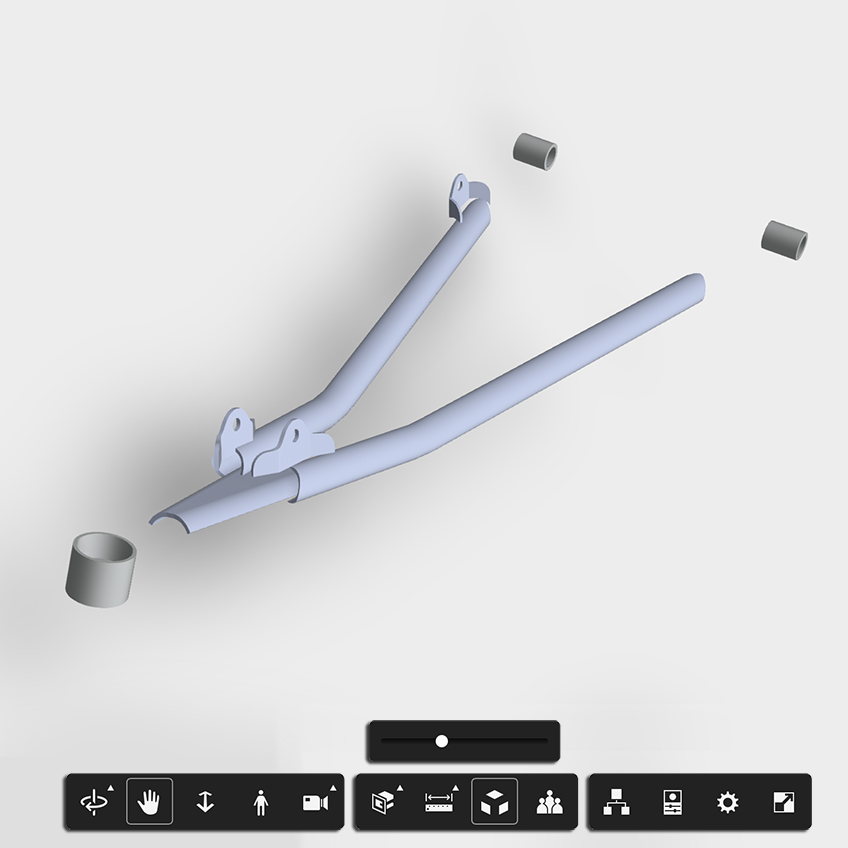

The original front arms have been 3d scanned for 1000th of a millimetre accuracy, this means that we can tell you there is 7 different critical angles on the top arm alone. With this information we can accurately build the suspension pickup points and the corresponding jig to ensure that each arm will be a straight bolt on fit and will follow all of the original factory geometry. All arms are laser cut, precision CNC mandrel bent, welded to exceed AS1554 standard and of course 100% Australian made.

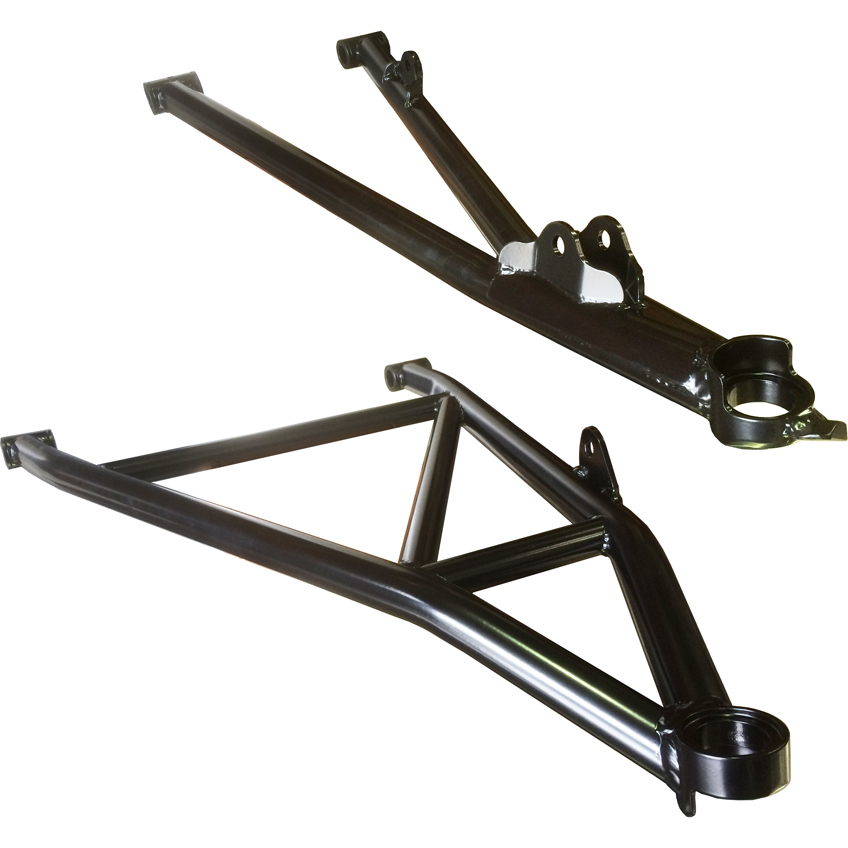

The heavy duty high clearance A-arms have an oversized strengthen balljoint holder, stronger gusseted shock absorber mounts, utilise the factory balljoints and bushes and are available in a variety of colours including the Can-am Red or Gold.

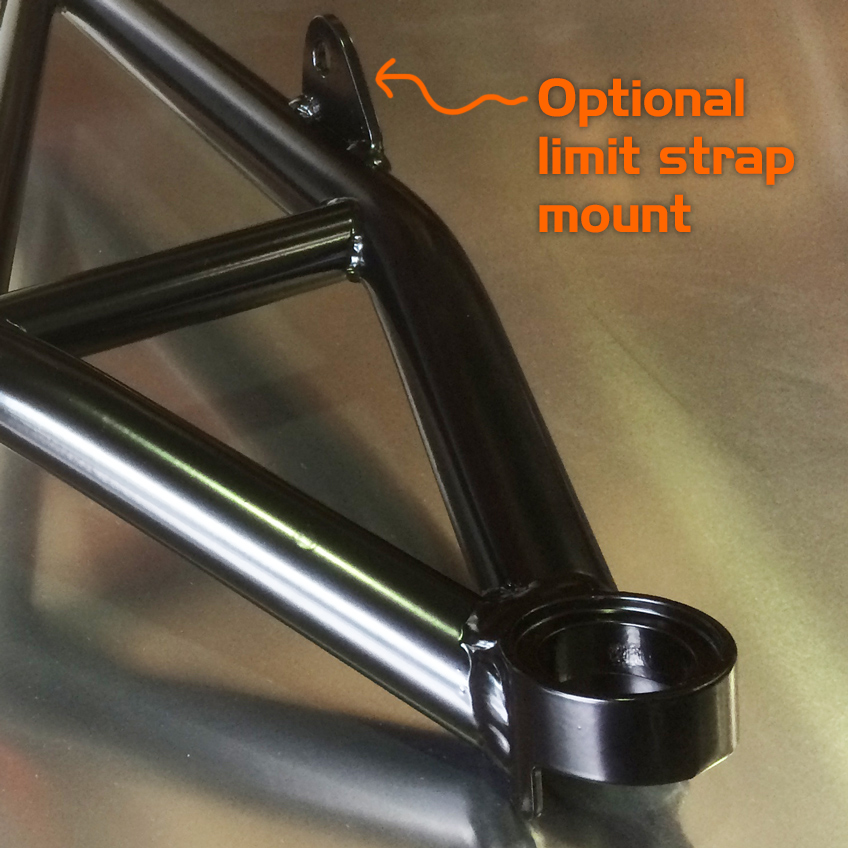

• Optional limit strap mounts
• Oversized Balljoint cups for strength
• High clearance lower A-Arms - eliminates the clearance bend
• 5mm steel shock mount
• 100% bolt-on design
• 350 MPa Cold Drawn high tensile steel tube
• Welded to exceed AS1554 standard
  • Colours
Upper and Lower - left and Right
